Full height turnstile installation manual
A full height turnstile serves as a heavy-duty access management system. It controls foot traffic in locations requiring top-level security. These barriers find common application in sports arenas, detention centers, and manufacturing plants. Their design guarantees complete prevention of unapproved entry.
The enclosed framework permits only single-person passage. This ensures strict regulation of movement in both directions. Engineered for longevity, these units resist harsh weather elements. They maintain reliable operation under constant demand. The system balances stringent protection with user accessibility.
Proper installation proves critical for mechanical models. It significantly impacts successful deployment. Numerous clients express worries about setup challenges. These concerns particularly involve the full height turnstile gate implementation.
How to install a full height turnstile? Full height turnstile installation manual from KARSUN, including detailed introduction and points for attention.
Full height turnstile installation steps
Step 1: Planning and design

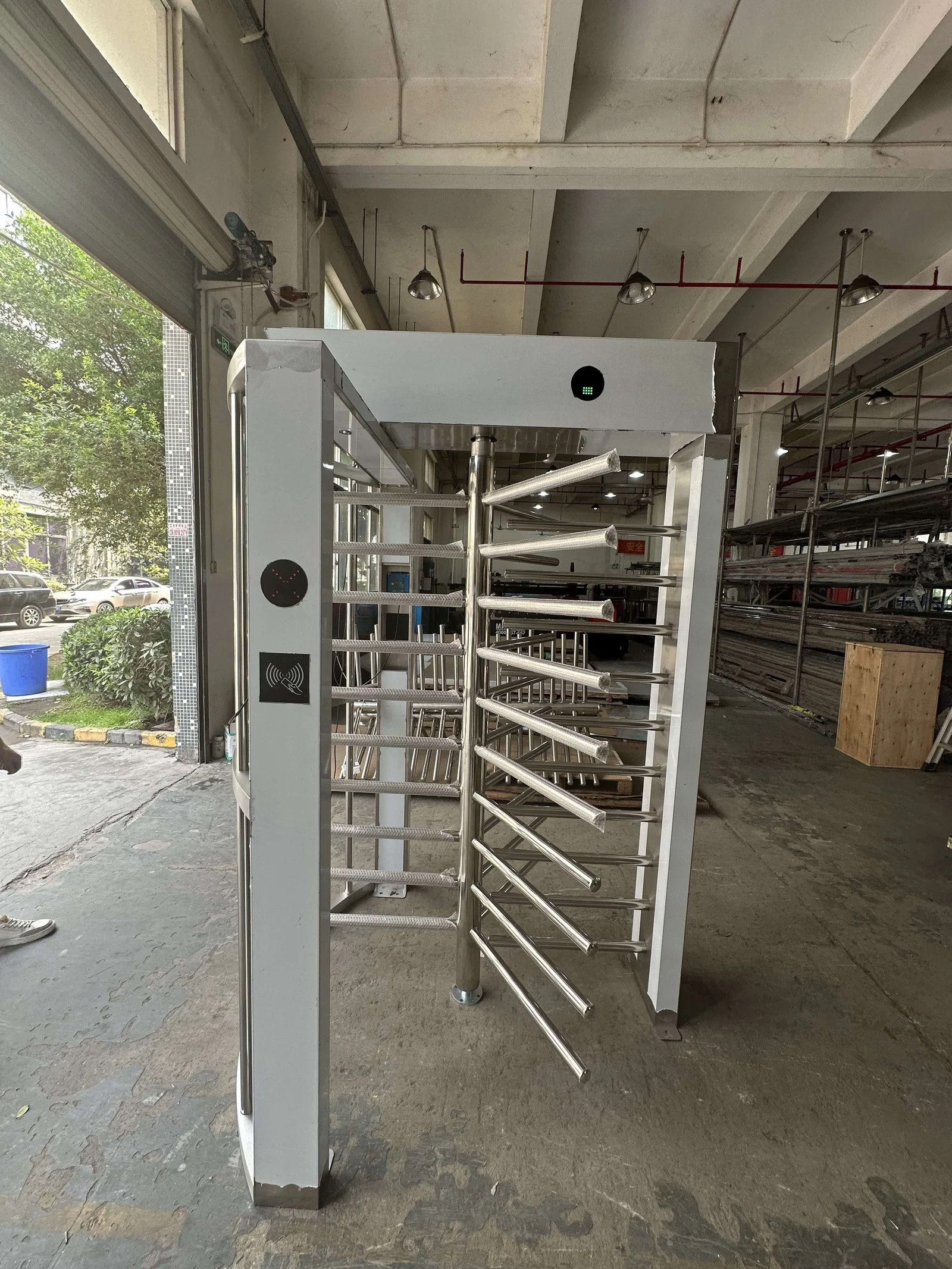

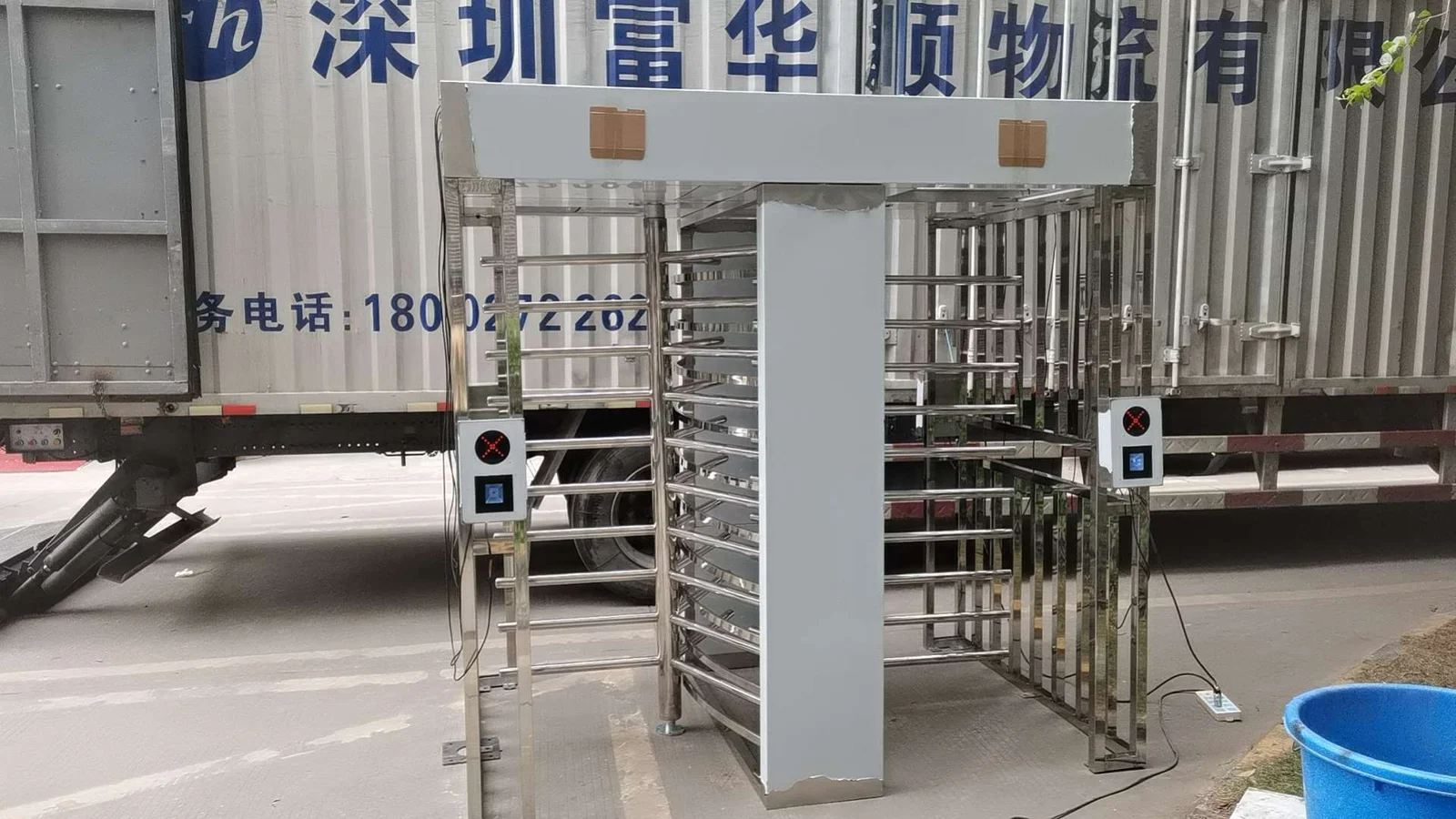

It’s important to have a plan in place before installing a full-height turnstile. You need a strategy before setting up a full-height turnstile. This involves evaluating the security needs of the area. You should also select the appropriate model from KARSUN’s range of full-height turnstiles. At KARSUN, we offer models like the JS-QGZ008 – Signal Lane Full Height Turnstile Gate with Face Recognition Access Control System and the JS-QGZ003 – Dual Lane Full Height Turnstile Gate for High Security Location Access Control. These models are designed to provide excellent security features. They include tailgate technology and seamless integration with existing systems. When deciding between these models, consider factors such as the number of turnstiles needed. Think about their location and layout. Also, take into account traffic flow, safety requirements, and space constraints.
Step 2: Preparation work
Clean and prepare the installation site for the full height turnstile. Verify that the ground is flat and secure. Consider factors like securing the full-height turnstile and connecting the power supply. Before beginning installation, confirm that all required tools and materials are prepared. These include screwdrivers, wrenches, screws, and expansion bolts. Ensure you have all necessary tools and equipment ready before starting the installation of KARSUN’s full-height turnstiles.
Step 3: Determine the installation location
When selecting a spot to set up the height turnstile gate, make sure it’s flat and well lit with no blockages for smooth operation. Take measurements to fit the dimensions of your chosen model’s frame. For instance, the JS-QGZ012 – Single Lane 90° Rotating Full Height Turnstile Gate has a frame size of 1550 x 1550 x 2300mm ( length x width x height ). Be certain that there is space for people to pass through and easy access for emergencies.
Step 4: Assemble the full-height turnstile frame
Start putting the structure together by following the detailed instructions provided in the KARSUN manual carefully. Attach each part securely to guarantee alignment and stability. The 304 stainless steel used in the turnstiles guarantees durability and resistance to environmental conditions. Ensure all bolts and screws are firmly tightened without excessive force. This prevents potential damage to the components.
Step 5: Connect power and signal lines
Follow the instructions provided by KARSUN to connect the power supply and signal lines securely using the recommended tools for safety measures.
Step 6: Install the rotary rod
Securely fasten the rods to their assigned spots on the frame according to your model selection. These rods might turn at fixed angles like 90° or 120° based on specifications.
Step 7: Install a card reader or facial recognition
Mount access control mechanisms such as card readers or facial recognition systems on the sections of the turnstile gates. Follow the instructions provided by the manufacturer when setting up these devices to guarantee integration with your entire system.
Step 8: Connect the access controller
Incorporate an access controller into your system by linking it to both the turnstile and your main security infrastructure to restrict access to authorized individuals. KARSUN’s offerings accommodate different access control techniques, such as RFID cards, QR codes and biometric systems. Conduct thorough testing on connections to confirm seamless communication among the devices.
Step 9: Debugging and testing
After installation is completed, debug and test the full height turnstile. Ensure the normal operation of various functions, such as traffic control, alarm system, and safety protection.
Step 10: Conduct training and acceptance
Train the staff members who will be using or maintaining the height turnstile system by offering training sessions, which cover basic troubleshooting methods and daily maintenance tasks as advised by KARSUN experts. Start an acceptance test after they complete training to ensure stakeholders are satisfied with the system’s performance.
Turnstile wiring diagram
What is the wiring diagram?
The turnstile wiring diagram shows the circuit connections between the turnstile mainboard, accessories, external systems, and access control systems during the assembly and installation of the turnstile gate. When installing a turnstile system, ensure it operates effectively and integrates well with security systems. Refer to the wiring plan provided by KARSUN for our full-height turnstiles. This plan explains how to connect power supply lines, signal lines, and access control devices efficiently. It ensures smooth integration with existing security setups.
Components of the wiring system
The wiring setup involves various essential parts that need to be properly linked together.
- The power supply is responsible for enabling the operation of all electronic components and it is crucial to use the right electrical tools to securely connect the power lines.
- Signal lines are essential for enabling communication between the turnstile and the external access control systems in place. KARSUN’s offerings are equipped to accommodate a range of access control techniques, such as RFID cards, QR codes and biometric systems.
- Access control devices, such as card readers or facial recognition systems, must be connected to panels on the turnstile for proper operation.
- The main hub links all parts together. Make sure only approved individuals can enter through the gate.
Why Choose KARSUN for Your Full-Height Turnstile Needs?
Innovative Product Design and Functionality
In the realm of full-height turnstiles technology, KARSUN stands as a standout with its designs and state-of-the-art functionality in place. Our line of products comes packed with cutting-edge elements like tailgating technology to ensure that only authorized individuals can enter secure zones. The adaptable structure of KARSUN’s full-height turnstiles allows for customization to meet security requirements while also adding to the visual appeal. Whether you need a lane or dual lane setup, KARSUN offers a range of models designed to suit various settings.

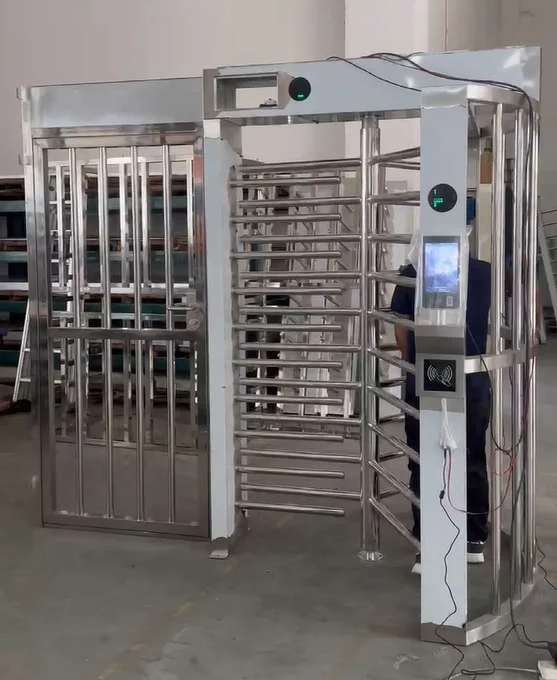

For example, the JS-QGZ011 – Signal Lane Full Height Turnstile Gate with Handicap Lane, which incorporates cutting-edge biometric verification technology, is well suited for high-security facilities due to its dependable entry process and seamless compatibility with various security setups.
High-Quality Materials and Durability Standards
KARSUN’s full height turnstiles are known for their durability as they are made from steel 304 to withstand tough environmental conditions and frequent use effectively. This material offers resistance to rust. Wear making it a reliable choice for security purposes. The sturdy build reduces the need for maintenance efforts, saving both time and resources in the long term.
We offer products such as the JS-QGZ006 – Double Channel Column 90° Rotating Full Height Turnstile Gate with a rotation system for smooth functionality. The design of this model prioritizes efficiency and dependability to deliver performance in challenging settings. Our product chassis is carefully sized to suit installation locations while maintaining stability and functionality.
Comprehensive Customer Support Services
At KARSUN, we prioritize delivering excellent customer service alongside high-quality products. Our team is dedicated to providing a positive experience for customers, from the initial meeting to after-sales support. We provide installation guides that explain each step of setting up your full-height turnstile.
الأسئلة المتداولة about Full Height Turnstile Installation
Q: What is the ideal location for a full height turnstile installation?
A: The best location for a full-height turnstile is at secure entry points with high pedestrian traffic. Ensure the area is free of obstacles. It should allow smooth foot traffic while maintaining strong security.
Q: How long does it take to install a full height turnstile?
A: Installing a full-height turnstile typically takes 1 to 3 days. The duration depends on the setup’s complexity and site conditions. Good planning and proper alignment speed up the installation process.
Q: What tools are required for full height turnstile installation?
A: You need a drilling machine, screwdrivers, wrenches, measuring tape, and a leveling tool for installation. Electrical tools for wiring are also required. Safety gear, such as gloves and goggles, is essential.
Q: Can full height turnstiles be installed outdoors?
A: Yes, full-height turnstiles can be installed outdoors if they are weatherproof and made from corrosion-resistant materials. Use proper sealing and take electrical precautions to ensure reliable performance over time.
