How to Determine the Right Number of Turnstiles for Your Space?

How many turnstiles do I need?

Identify Installation Site Requirements

Figuring out what’s needed for the installation location is the step in determining the number of turnstiles required. Take into account factors like the layout of the area, whether it’s inside or outside. And environmental aspects such as exposure to weather conditions. For instance, the JS-Y006-Flap Barrier Turnstile Gate is appropriate for use both indoors and outdoors, hence it is an option for different settings. Make sure that the chosen models of turnstiles fit within the dimensions of the site effectively.

Select Turnstile Type

Different turnstile types, such as sliding turnstiles and waist-height rotating turnstiles, can be combined in various ways. Choose the type of turnstile based on the specific requirements of the installation.

Consider Pedestrian Flow

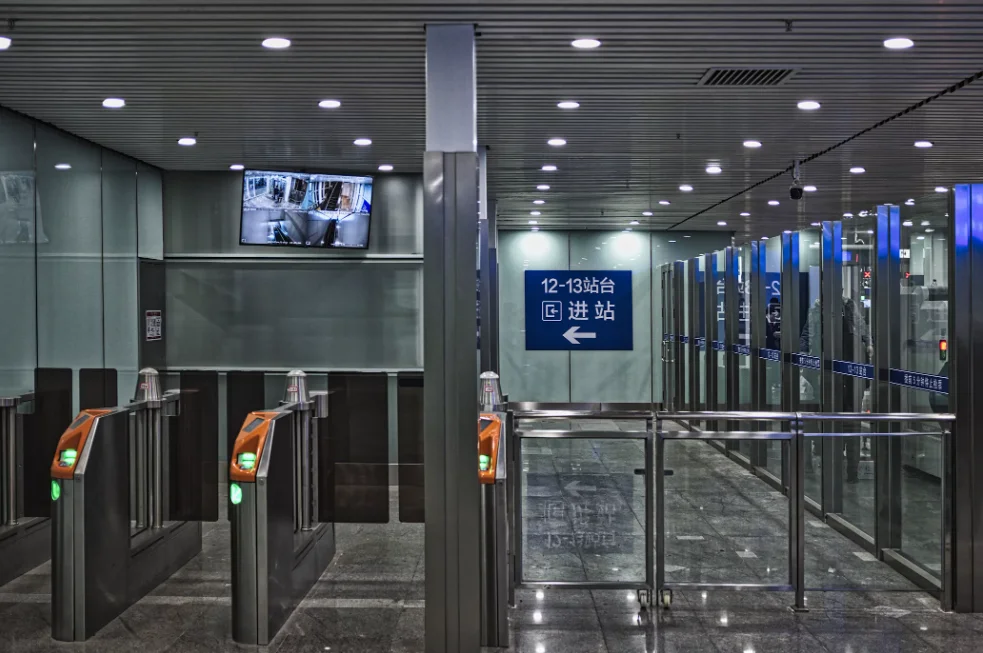

Studying the movement of pedestrians is important to figure out the number of gates needed for entry control purposes in areas, like metro stations or stadiums where there is a lot of foot traffic present.

Explore Different Solutions

Various solutions are tailored to needs. For example, if two entry and exit directions are to be offered, three possible solutions would be a combination channel of three turnstile gates (two single-core and one dual-core), a two single-core type channel or two two single-core type channels.

Evaluate Budget and Space Constraints

Cost and space constraints are factors in determining the appropriate number of turnstiles to install. For instance, compact options such as the JS-PYZ002 – Inclined Surface Sliding Turnstile offer a cost space, saving solution making them a great fit for areas with limited space. Striking a balance between cost effectiveness and functionality guarantees that your investment fulfills requirements while also being financially prudent.

Consult with Turnstile Experts

Working closely with professionals from firms such as KARSUN can assist in customizing solutions to suit your requirements effectively. Our knowledge guarantees that you choose the best suited models while enhancing pedestrian movement and security protocols.

Based on the flow of people

Assessment of Fixed Population

It is necessary to consider the steady number of people in an area to ascertain the appropriate number of turnstiles required for efficient operation and regulation of the movement of people entering a building or facility. For instance, in a factory with 1000 members, factors like the duration of normal commutes and potential emergency evacuations are considered.

Emergency Evacuation Consideration

During emergencies, turnstiles need to enable fast evacuation procedures to ensure safety compliance in situations. For example, if 1000 individuals need to be evacuated within 5 minutes and 60 individuals can pass through the emergency passage per minute, it is determined that at least 4 passages are required.

Manufacturer Recommendation

Many companies offer suggestions based on what their products can do, such as KARSUN providing choices ideal for areas or upscale spots that value looks.

Adjustment for Special Cases

In situations, there may be a need for tailored solutions, such as wheelchair-friendly entrances or broader pathways in places like hospitals or public spaces.

Customization Based on Environment

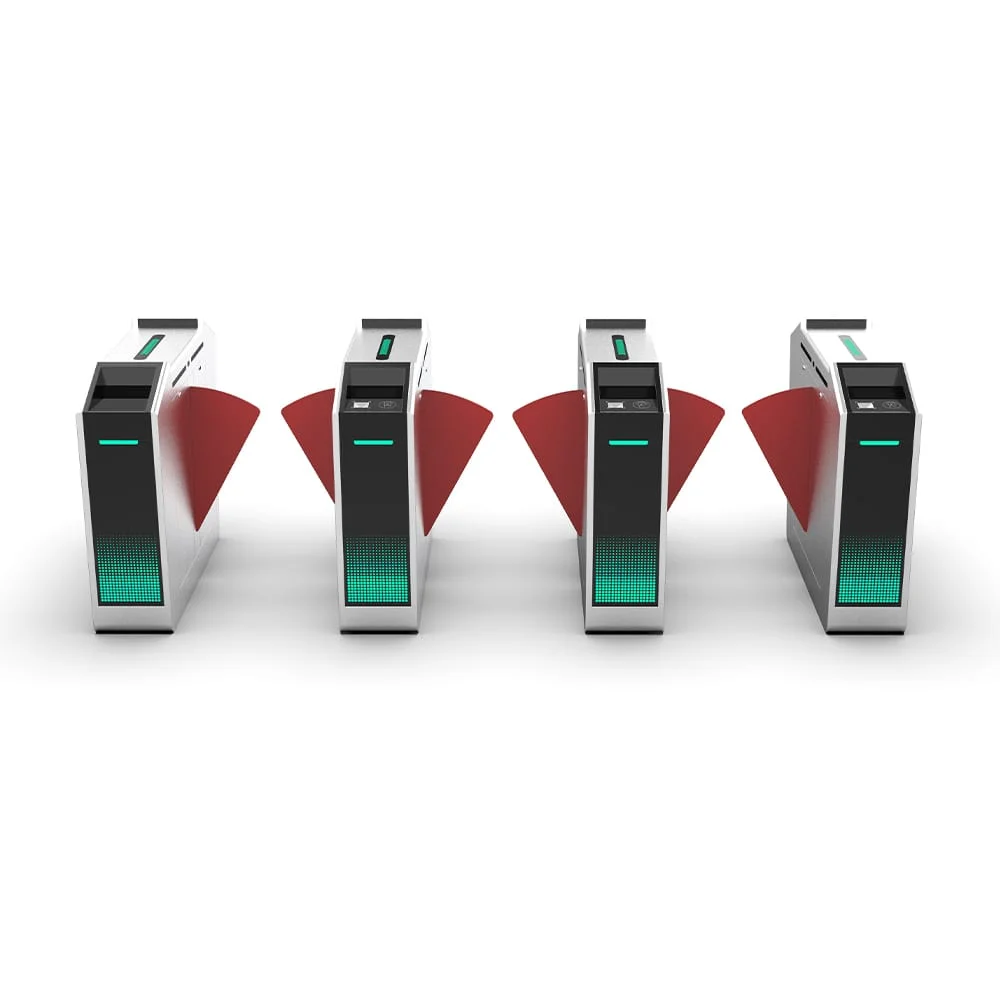

Depending upon the environment they are placed in and its conditions, stainless steel designs like the JS-YZ017-Flap Barrier Turnstile Gate are perfect for use as they are resistant to water and weather damage.

Flexible Configuration

Understanding that the number of people can vary, especially in populated areas or on holidays, turnstile gate configurations can be adjusted accordingly. For example, maintaining 2-3 openings during regular times and all openings on holidays provides both efficiency and safety.

Emphasis on Real-World Situations

In real life situations, it’s common to need solutions that strike a balance between function and style. KARSUN offers a range of products that can be easily tailored to meet various operational needs.

Based on the passage width

Tripod Turnstile Gate

Consists of three rods, the standard rod length is 51cm, and the length of the bars only accommodates one person. It accommodates one-way or two-way pedestrian passage control and normal traffic speed. The normal bridge-type tripod turnstile gate body is 28cm. Therefore, the road width required for a passage is 83cm.

The tripod turnstile is used extensively in the simple dissuasion level public channel access control. It is used widely in the enterprise attendance system, office building attendance system, supermarket consumption system, shopping arcade consumption system, smart residential security access control system, subway station ticket checking management, train station ticket checking management, scenic spot ticket checking management and so on, as well as the construction site palm-shaped system management.

Flap Barrier Gate

The flap barrier gate is suitable for one-way or two-way control of pedestrian flow and the traffic speed is high. It is extensively used to manage access control of staff.

It is made up of over two lanes. The width of the passage is typically less than 55cm( some are 60cm). The width of the casing is typically 28cm( some are 30cm). Therefore for a single lane, it will take 111cm space. If there is over one lane, the middle one will be double core. For two lanes, a minimum of 194cm is required. Flap barrier turnstile gates need to have more room compared to the tripod turnstile.

Swing Turnstile Gate

The swing turnstile gate provides the largest passage width among all other pedestrian turnstile gates. The length of the swing arm can be customized. The default single-lane width length is 60cm, and the maximum length is 900cm. The casing width of the swing turnstile gate varies. For the standard swing turnstile gate, the default is 28cm. For a narrow turnstile gate for swing, it is 18cm. Swinging gates provide versatility by adjusting to walkways and meeting specific requirements, like wheelchair accessibility while still ensuring security.

Sliding Turnstile Gate

A sliding turnstile gate, or a full-height flap barrier gate, is an improved product of a general flap barrier gate. It is called a sliding gate turnstile, full-height sliding turnstile, prison flap barrier gate, etc. There is no special name in the industry, and its general name is full height sliding turnstile gate. A full-height sliding turnstile gate is a special mechanical device for people access control. The standard lane width is 60cm. Now 90cm choices are available. The width of the casing is typically 35cm. It is like the flap barrier turnstile. There should be at least 2gates to be one lane. So the road width required will be 130cm. If two lanes, at least 225cm required.

Full Height Turnstile Gate

The width of passage is usually 65cm in rotary operation, to be used on one-way or two-way control of pedestrian passage, and slow traffic speed. Full height turnstiles are mainly used in prisons, military administrative areas, and factories with strict access control (chemical plants, building sites, etc.). Inner turnstile device of the security turnstile features an emergency control device. When electricity is turned off, the rotary central arm may rotate freely in order to unblock the way; powered on, it would be automatically locked. Single-channel full height gate has 163cm of width and the double channel 230cm in width. The dimensions can be customized based on needs.

Why confirm the number of turnstiles?

Optimal Resource Utilization

It’s important to get the amount of turnstiles to make the best use of resources available to us. Having too many can result in spending and equipment sitting idle while having too few can cause crowding and inefficiencies.

Cost Efficiency

Accurately determining the number of turnstiles is crucial for cost-effectiveness management in facilities to strike a balance between functionality and budget limitations – it’s both space-efficient and economical. By adopting this strategy you can control expenses while meeting operational needs effectively.

Space Management

When deciding the kind and quantity of turnstiles required limitations in space often come into play. For areas with space yet a need for top notch performance, compact options such as the JS-Y006-Flap Barrier Turnstile Gate are a great fit. Effective planning is key to making sure that the available space is used efficiently without sacrificing user comfort or safety.

Traffic Flow Optimization

The number of turnstiles has an effect on how smoothly pedestrians move through an area with high foot traffic like metro stations or stadiums. In places where there are people passing through such as these locations mentioned above multiple turnstiles may be needed to avoid congestion.

Security Enhancement

The optimal amount of turnstiles boosts security by reducing entry points in a given space or facility setting. Turnstiles like the JS-XBZ002-Swing Gate Turnstile with height options can effectively deter tailgate attempts and allow only approved individuals to enter specific areas as needed which is crucial in places where tight access control is essential.

Meeting Specific Requirements

Various establishments have needs depending on their operations demands. Luxurious venues like hotels or smart buildings may opt for appealing options. In contrast industrial locations may prioritize sturdiness and solid construction more than aesthetics.

User Experience

Improving the setup can enhance how users experience a service by cutting down on wait times and making entry processes seamless and efficient. Adequate turnstiles contribute to a positive user experience. Avoiding long queues and delays enhances user satisfaction, whether in public transportation stations, office buildings or other crowded spaces.

Frequently Asked Questions about Turnstiles

Q: How many turnstiles do I need?

A: Traffic Volume: The number of turnstiles required will depend on the amount of foot traffic passing through the entrance. A high-traffic area will require more turnstiles to ensure a smooth flow of people. Peak Hours: It is important to consider peak hours when determining the number of turnstiles required.

Q: How do you calculate turnstiles?

A: P = 1,500 and M= 30 (P / M) = 50 people a minute entering the building. When calculating the throughput of any entrance area, you should always take into account all of the above listed considerations as well as how humans react in real life when using entrance control.

Q: What are the ADA requirements for turnstiles?

A: Eliminating the barrier caused by a turnstile may be accomplished by simply removing the turnstile and leaving the opening. To assure passage of people using wheelchairs, or crutches, the opening must be at least 32 inches wide.
